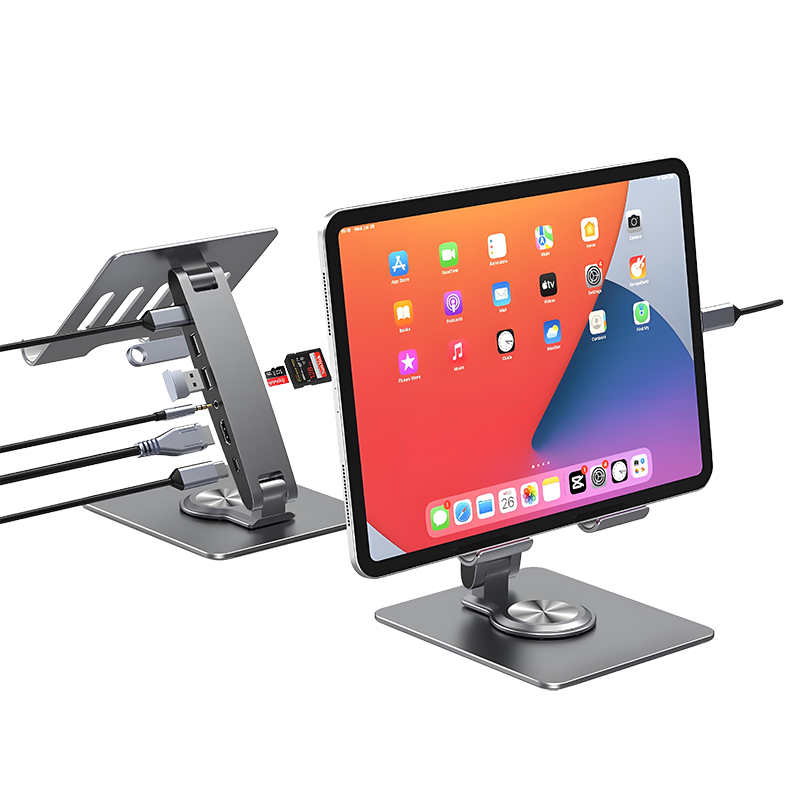

Aluminum Tablet Stand with Type-C Docking Station

PR100B is an universal docking station for laptop and tablet.For stand it is only designed for 4" to 12.9in models. If only use as docking station,this USB C Docking Station Stand supports Mac OS, iPad OS, Windows and Android systems. The USB C dock stands perfectly combine the function of a USB C dock and a laptop stand, making it the best choice for your USB C laptop with more features and possibilities.

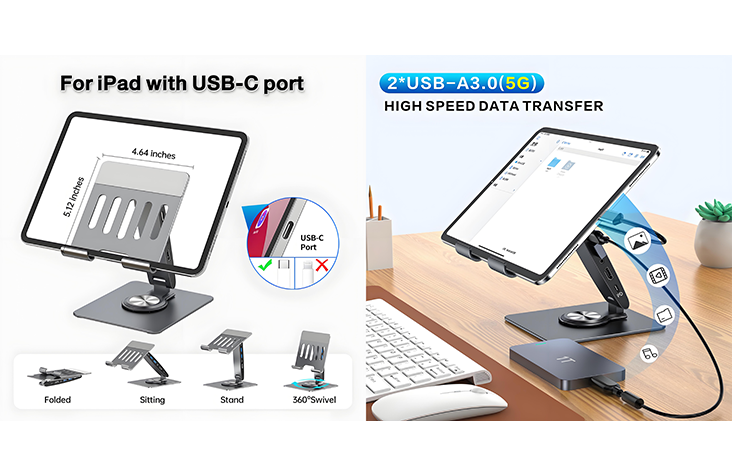

【Made for USB-C iPads】This tablet stand with USB-C hub is fully compatible with Apple iPad Pro/Air/Mini all models featuring a USB-C port. Plug and play, no driver is required
【7-in-1】This docking station has 7 functional ports to meet your expanding needs with a USB-C 100W PD charging port, a 4K60Hz HDMI port, 2x USB-A 3.0 ports,TF and SD card slots, a 3.5mm audio jack, and a USB-C host port(5G). Use the included cable, connect one end to the USB-C port of iPad, connect the other end to HOST port on the stand, after connecting, all ports can start to work
【4K HDMI + High Speed Data Transfer】This USB C Dock with 4K HDMI allows you to expand and share your tablet screen to a larger screen. The resolution can reach up to 4K UHD (3840x2160@60Hz) via the HDMI port. This usb c docking station with 2x USB 3.0, compatible with iPad Pro stand with docking hub, enables data transfers of up to 5Gps, 10xfaster than USB2.0, no drivers needed for this iPad dock, easy to improve efficiency

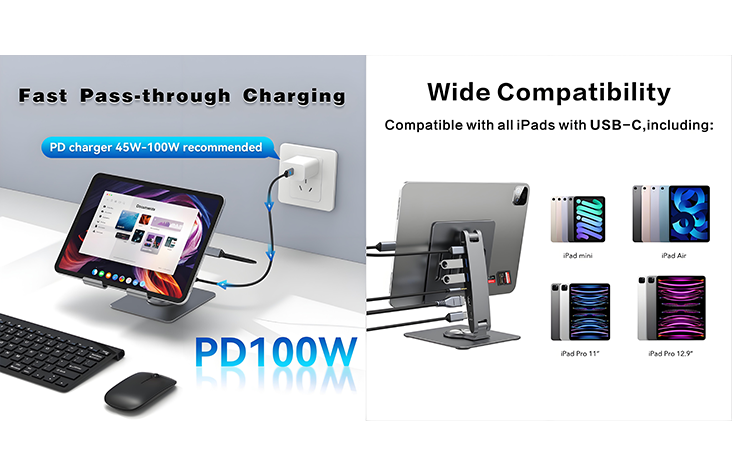

【PD100W Fast Charge + Heat Dissipation Design】Use a 45W–100W USB-C charger with the USB-C power delivery input port to provide a high-speed pass-through charge to your device(Charger not included). The PD port is only for charging not for data transfer, the included USB-C cable can be for charging and data transfer but use it for charging you must connect PD port to the power. The hollowed-out design and the use of aluminum alloy materials can greatly improve the cooling effect of the stand hub

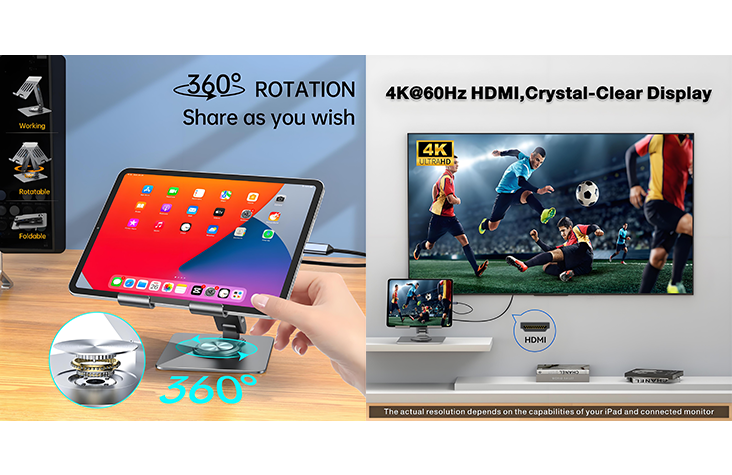

【360 Degrees Rotatable and Adjustable】This iPad stand for desk can be rotated 360 degrees, allowing you to easily share your tablet screen as you wish. It can be adjusted in height, angle and folded for easy portability. This allows you to choose the ideal height and angle of your tablet. This USB C docking station perfectly combines the function of a USB C dock and a tablet stand, making it the best choice for your tablet with more features and possibilities

• Q1: How to figure out the maximum resolution my laptop support?
  A1: 1. Firstly check the graphics card version of your laptop: find "display adapter" in "Device Manager".
  2. Check your graphics card information with its manufacturer.
• Q2: What is the DisplayPort(DP) Alt Mode?
  A2: It's commonly that the video output of notebook comes from the USB-C connector, which is called DisplayPort Alt Mode. The USB-C connector will change to provide DisplayPort Alt Mode when it detects that it is connected to a monitor or dock that has DisplayPort capability.
• Q3: What is the Display Stream Compression(DSC)?
  A3: Display Stream Compression(DSC) is a technology that compresses image data and transmits it so that high resolution content can be output with low bandwidth, no distortion and low delay after compression.
• Q4: Why does it show "slow charging" on my laptop?
  A4: Some users may notice that the charging status shows "slow charging", this is because some series of laptop have protection protocol, especially laptops that have both Thunderbolt 3 port and over 100W external DC power adapter. Please solve it by using the original power adapter to charge.
• Q5: Can it be connected with LED Display?
  A4: Yes. It can be connected with LED display or projector.
• Q6: None of the docking station ports are working? ?
  A6: This may be due to anincorrect connectlon between the laptop andthe docking station, To connect properly, use the included duol USB-C cable.Connect one end to the full-function USB-C port on your laptop. connect the other end to the HOST port on the docking station of the stand.
• Q7: What size does the stand fit for?
  A7: The stand is designed for laptops ranging from 7 to 15.6 Inches. When adjusting the height of the stand, ensure the center of gravity is balanced. If the center of gravity is too off-center, the laptop may become unstable and tip over. Adjust the center of gravity properly, and the laptop will slt securely on the stand.
• Q8: Why does it require a lot of force to open the stand?
  A8: The stand is designed with a higher torque setting, for the rotating axis. which requires more force to open. However, this design signlficantly enhances the stand' s stability and reliability, ensuring safety and preventing potential risks such as loosening or collapsing.
